25MW Condensing Steam Turbine-Generator Package (NEW) 50 Hz

25MW Condensing Steam Turbine-Generator Package (NEW) 50 Hz

Contact us for price

Location:United Kingdom

Description

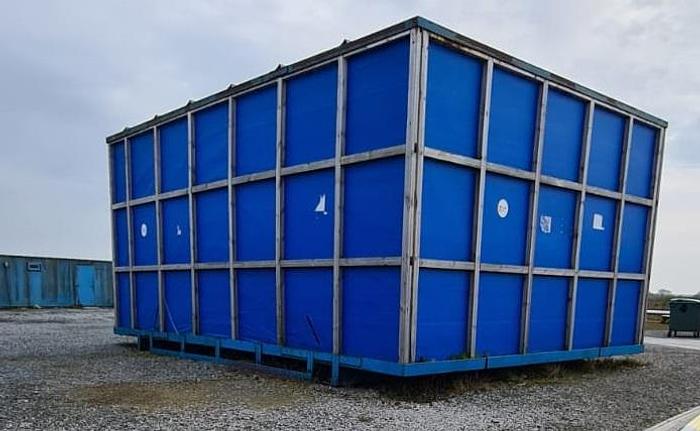

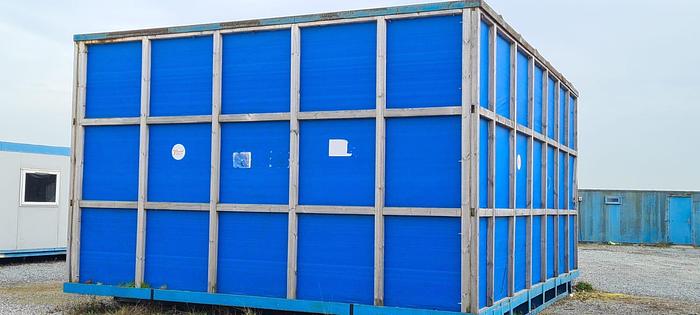

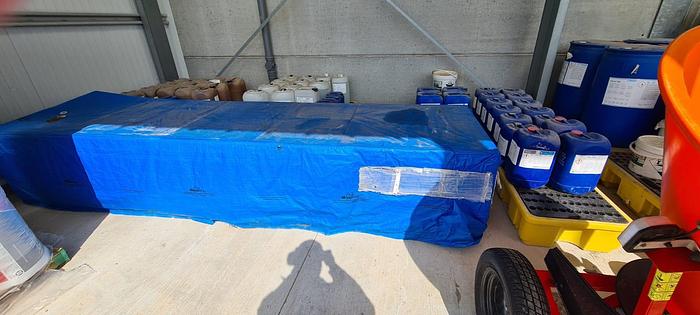

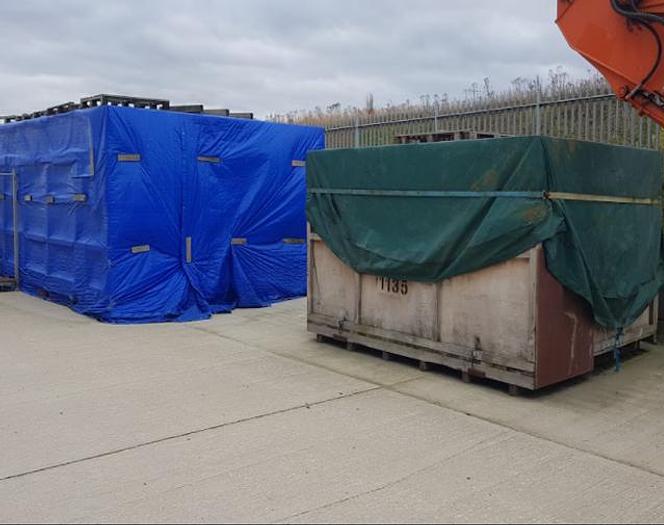

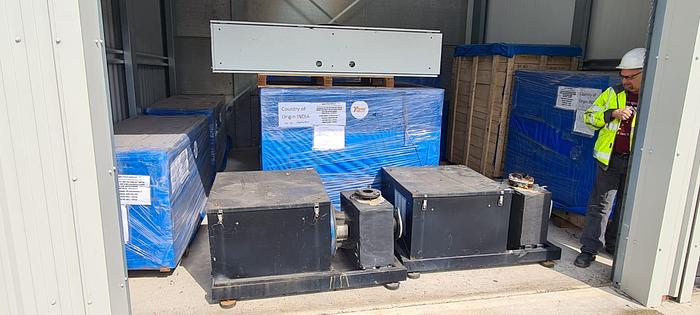

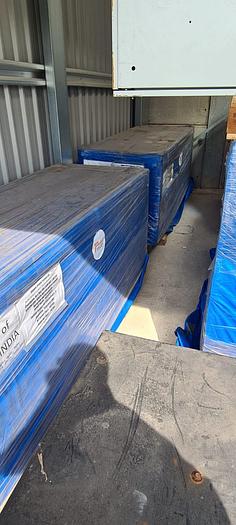

Unused (NEW) 25MW Condensing Steam Turbine-Generator Package.

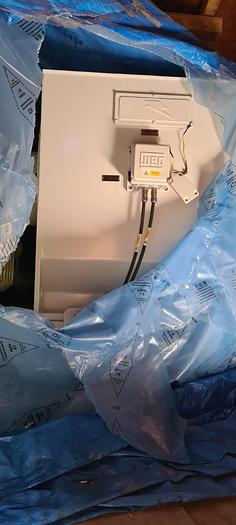

As new, never installed, in storage.

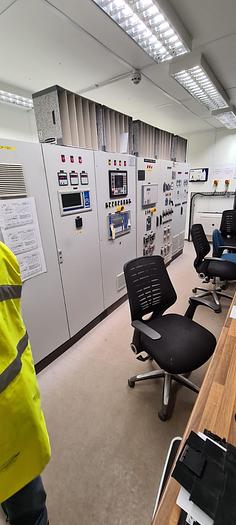

*photo is of sister turbine, installed. Rated output: 25MW Year of Manufacture: 2019 Manufacturer: Triveni Turbines / WEG


Turbine

Manufacturer: Triveni Turbines

Type: Condensing

Rated Power: 25000kW

Rated Inlet Steam Pressure: 66 Bar

Rated Inlet Steam Temperature: 425 Deg C

Inlet Mass Flow: 105t/hr

Speed: 6,141 RPM


Gear Box

Manufacturer: Lufkin

Input Speed: 6,141 RPM

Output Speed: 1,500 RPM


Generator

Manufacturer: WEG (India)

Rated Output: 31250kVA

P.F: 0.8

Speed: 1,500 RPM

Voltage: 11kV

Frequency: 50Hz

UEN 3545

Specifications

ManufacturerTriveni
Year2019
ConditionNew
Stock NumberUEN 3545
