22MW Condensing Steam Turbine-Generator Package (USED) 50Hz

22MW Condensing Steam Turbine-Generator Package (USED) 50Hz

Contact us for price

Location:Robertsbridge, United Kingdom

orCall +44 (0) 1580 882005

Description

22MW Condensing Steam Turbine-Generator Package with ACC

Used

Year of Manufacturer: 2002

Hours of Operation: 55,000


Turbine:

Manufacturer: GE Nuovo Pignone

Model: HNK 50/80

Power: 22,11 MW

Inlet Pressure: 55.71Bar A

Inlet Temperature: 482Deg C

Exhaust Pressure: 0.88Bar A

Speed: 5000 RPM


Gearbox:

Manufacturer: Flender

Input/Output Speed: 5050/1500 RPM


Alternator:

Manufacturer: ABB

Rated Output: 30.630 KVA

Power Factor: 0.85

Voltage: 11kV

Frequency: 50HZ

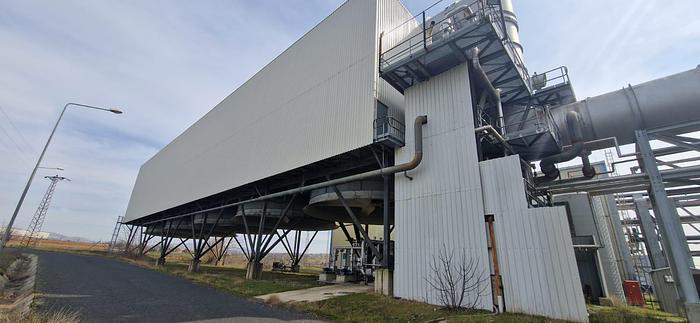

Condenser: Air Cooled


UEN 3297

Specifications

ManufacturerNuovo Pignone
Year2002
ConditionUsed
Stock NumberUEN 3297
