1 x 4MW Condensing Steam Turbine-Generator Package with ACC (USED) 50Hz

1 x 4MW Condensing Steam Turbine-Generator Package with ACC (USED) 50Hz

Contact us for price

Location:Robertsbridge, United Kingdom

Description

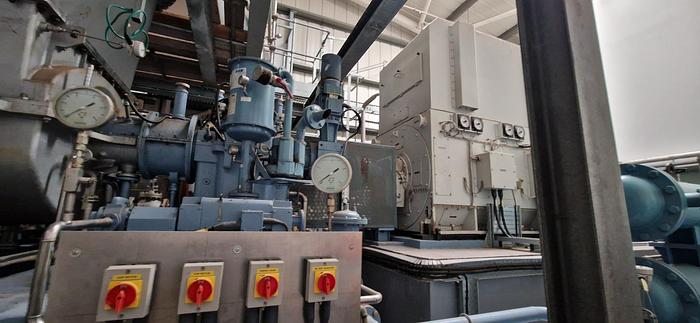

1 x 4MW Condensing Steam Turbine-Generator Package with ACC (USED) 50Hz

Condition: Used

Year of Manufacture: 2011

Hours of Operation: ~25,000


Make: Triveni

Type: Bleed Condensing

Rated Output: 4.028MW

Inlet Mass Flow: 18.5t/hr

Inlet Steam Temperature: 450Deg C

Inlet Steam Pressure: 41 Bar

Exhaust Pressure: 0.07 Bar

Bleed: 4Bar / 1.9t/hr

Speed: 8,278 RPM

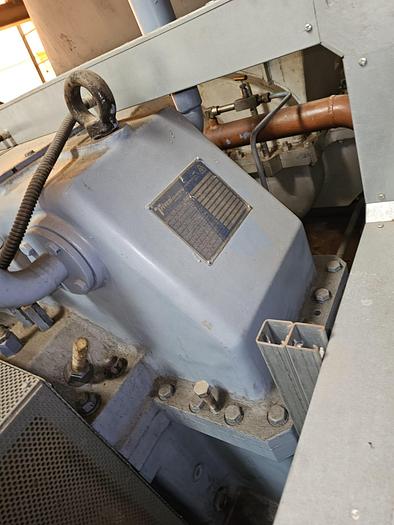

Gear

Manufacturer: Triveni

Input Speed: 8,278,043 RPM

Output Speed: 1,500 RPM


Alternator

Manufacturer: TDPS

Rated Output: 4,367 KVA

Power Factor: 0.98

Voltage: 11kV

Frequency: 50Hz

Speed: 1,500 RPM

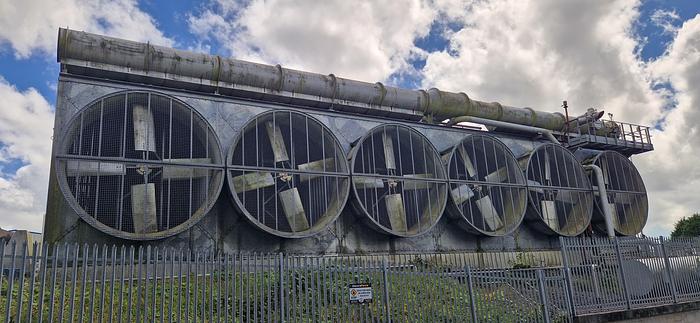

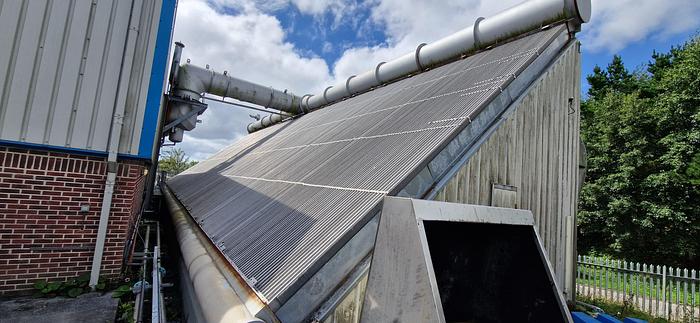

Condenser

Type: Air Cooled


UEN 3760

Specifications

ManufacturerTriveni
Year2011
ConditionUsed
Stock NumberUEN 3760
