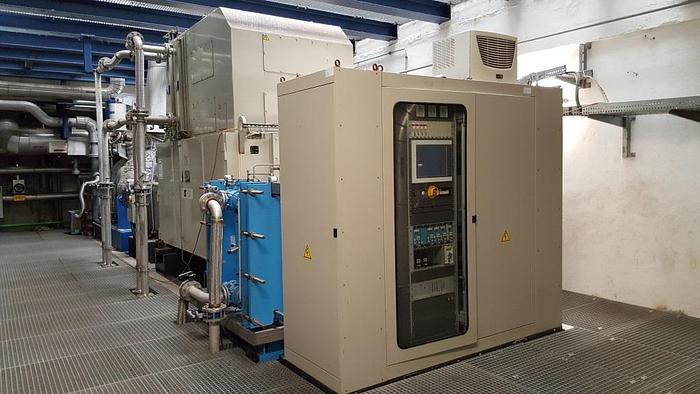

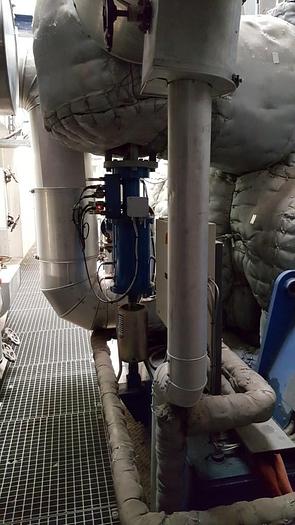

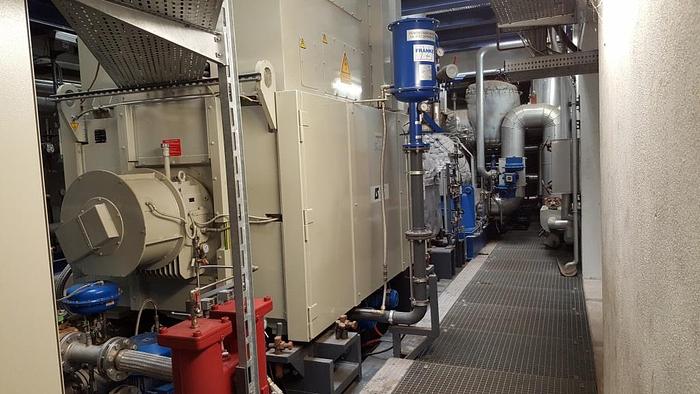

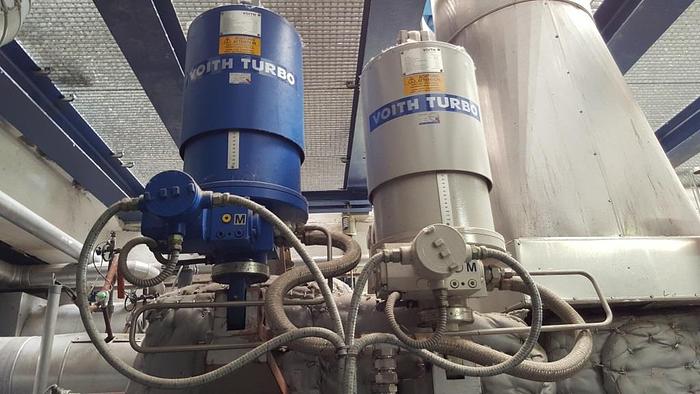

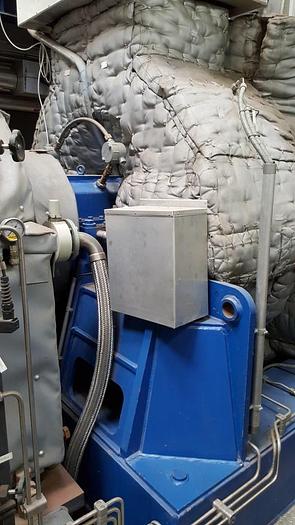

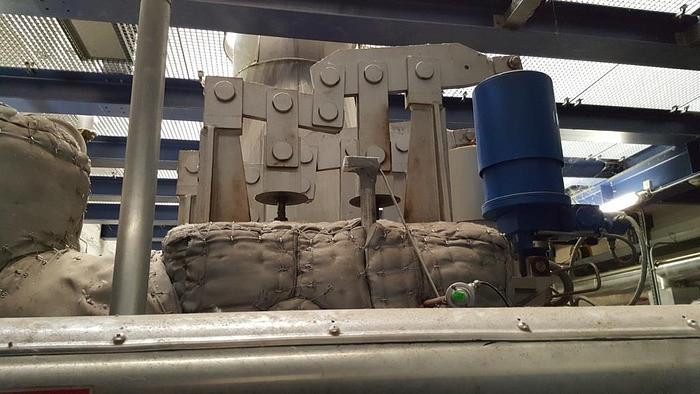

1 x 7.2MW Back Pressure Steam Turbine-Generator Package (USED) 50Hz

1 x 7.2MW Back Pressure Steam Turbine-Generator Package (USED) 50Hz

Contact us for price

Location:Robertsbridge, United Kingdom

orCall +44 (0) 1580 882005

Description

1 x 7.2MW Back Pressure Steam Turbine-Generator Package

Condition: Used

Year of Manufacture: 2005

Hours of Operation: 15,500


Make: Blohm & Voss

Type: MARC2 – B10 - back pressure with extraction

Output: 7.2MW

Inlet Mass Flow: 45 t/h

Inlet Pressure: 58 bar (60,5 bar max)

Inlet Temp: 510°C

Extraction pressure: 21 bar (24,0 bar max)

Extraction temp.: 383°C (490°C max)

Extraction quantity: 7 t/h (15 t/h max)

Exhaust pressure : 3 bar (4 bar max)

Exhaust temp. : 180°C (262°C max)

Exhaust quantity : 28 t/h (47 t/h max)

Speed : 10,043 RPM


Gearbox

Input Speed: 10,043 RPM

Output Speed: 1,500 RPM


Generator

Manufacturer: Leroy Somer

Power: 9.000 kVA

Voltage: 5.25 kV

Frequency: 50 Hz

Speed: 1.500 RPM

Power factor: 0.8


UEN 3431



Specifications

ManufacturerBlohm & Voss
Year2005
ConditionUsed
Stock NumberUEN 3431
