1 x 16MW Back Pressure Steam Turbine-Generator Package (USED) 50hz

1 x 16MW Back Pressure Steam Turbine-Generator Package (USED) 50hz

Contact us for price

Location:Robertsbridge, United Kingdom

orCall +44 (0) 1580 882005

Description

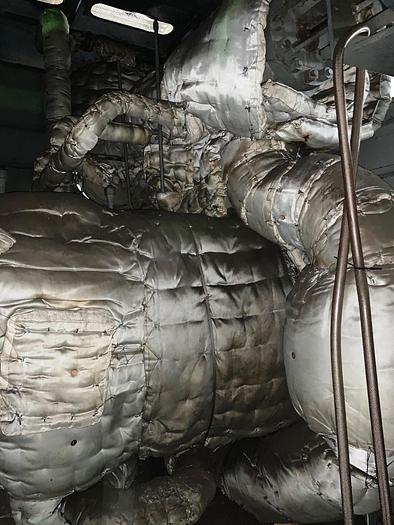

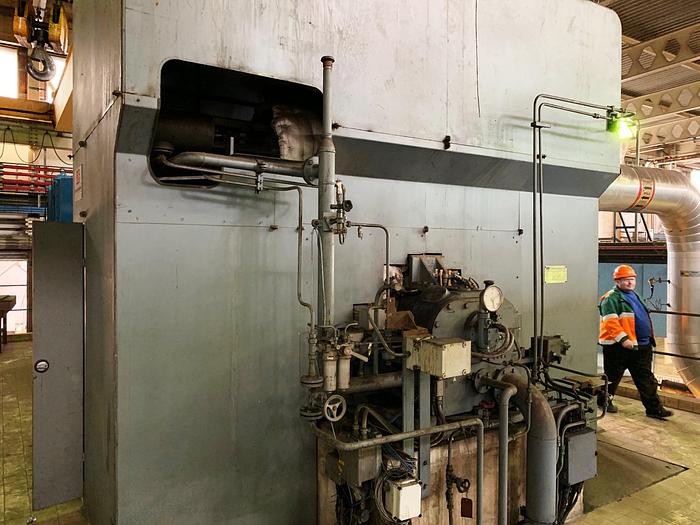

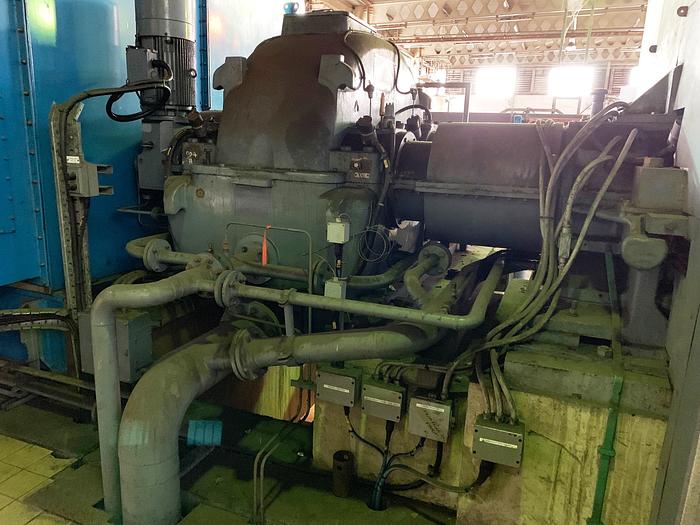

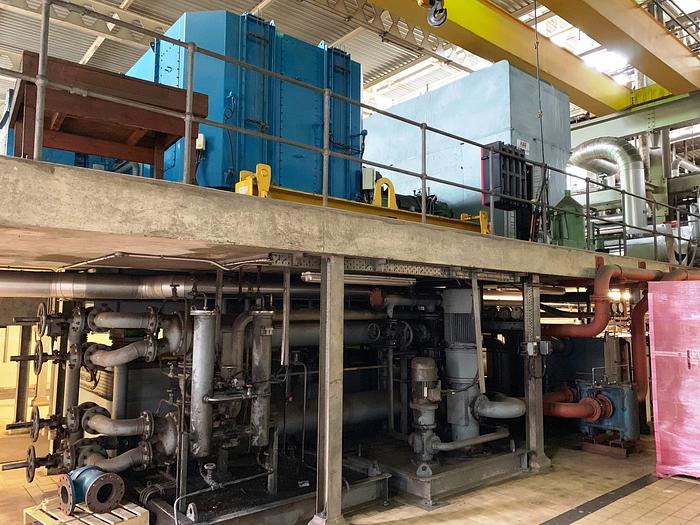

1 x 16MW Back Pressure Steam Turbine-Generator Package

Condition: Used

Hours: ~30,0000

Year: 1992


Make: ABB Turbinen Nurnberg GmbH

Model: G32

Year: 1991

Rated Speed: 7,984 rpm

Power Production:

Normal (@ generator terminals): 16,000 kW

Maximum Continuous: (@ gen. terminals): 17,000 kW

Inlet Flow:

Normal (@ Normal Conditions): 119,000 kg/h

Maximum Continuous (@ Normal Conditions): 126,000 kg/h

Maximum Continuous (@ MC Conditions) abs.: 101,500 kg/h

Inlet Pressure:

Normal: 36 bar abs.

Inlet Temperature:

Normal: 420 C

Minimum: 380 C

Exhaust Pressure:

Normal: 3.07 bar abs.

Maximum Continuous: 3.5 bar abs.

Minimum: 1.9 bar abs.(*)

Exhaust Temperature:

Normal (@ Normal Conditions): 153 C

* The max. load at this back pressure should not exceed 85% of rated output (13600 kW).

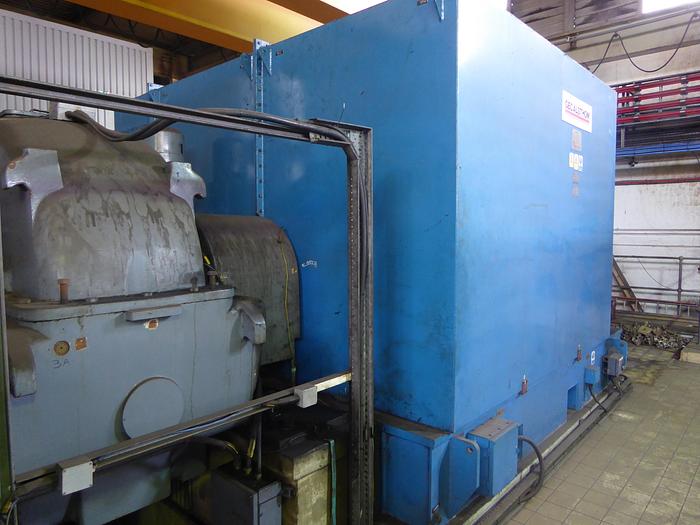

Generator:

Make: GEC Alsthom

Year: 1990

Poles: 4

Apparent Power: 20,000 kVA

Power Factor: 0.8

Rated Voltage: 11,000 V

Rated Current: 1,050 A

Phases: 3 Phase

Frequency: 50 Hz


UEN 3303

Specifications

ManufacturerABB
Year1992
ConditionUsed
Stock NumberUEN 3303
