1 x 19.47MW Back Pressure Steam Turbine-Generator Package (USED) 50Hz

*Note: This package is sold but the advert is being kept live as an example of what we can supply.

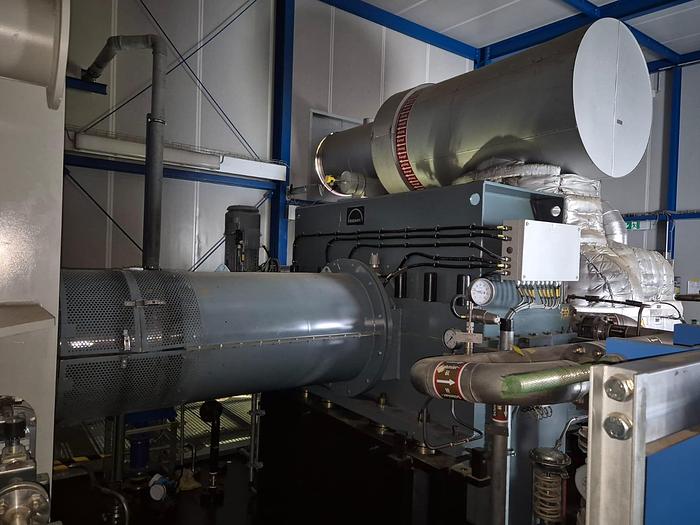

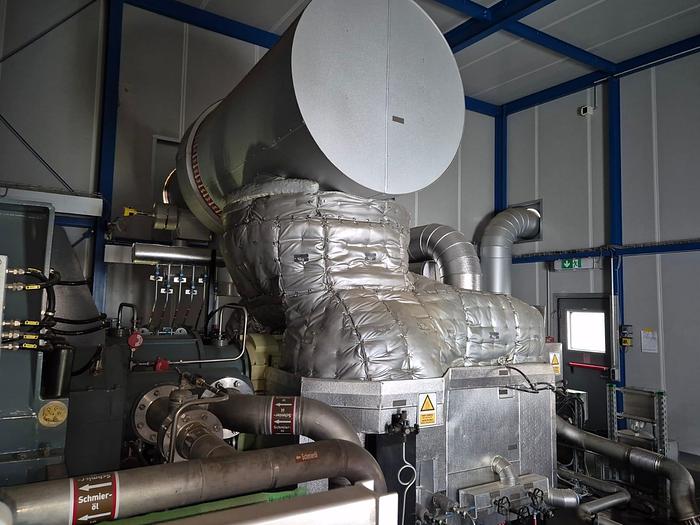

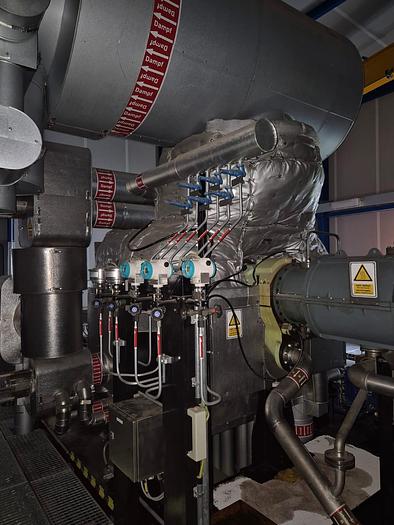

1 x 19.47MW Siemens Back Pressure Steam Turbine-Generator Package

Condition: Used

Year of Manufacture: 2018

Hours of Operation: 40,000

Make: Siemens

Model: SST 300

Type: Back Pressure

Rated Output: 19.47MW

Inlet Mass Flow (MAX): 125t/hr

Inlet Steam Temperature: 517 Deg C

Inlet Steam Pressure: 115 Bar

Exhaust Pressure: 2.9-5.1 Bar

Speed: 8,300 RPM

Gear

Manufacturer: Renk

Input Speed: 8,300 RPM

Output Speed: 1,500 RPM

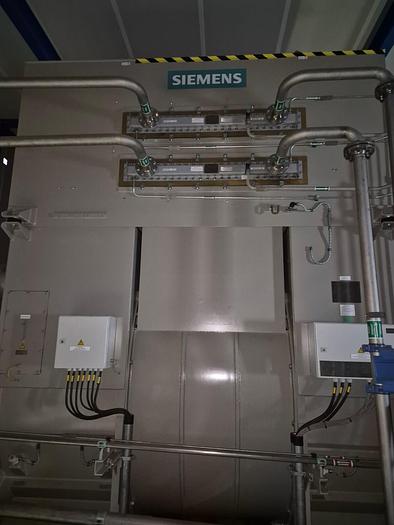

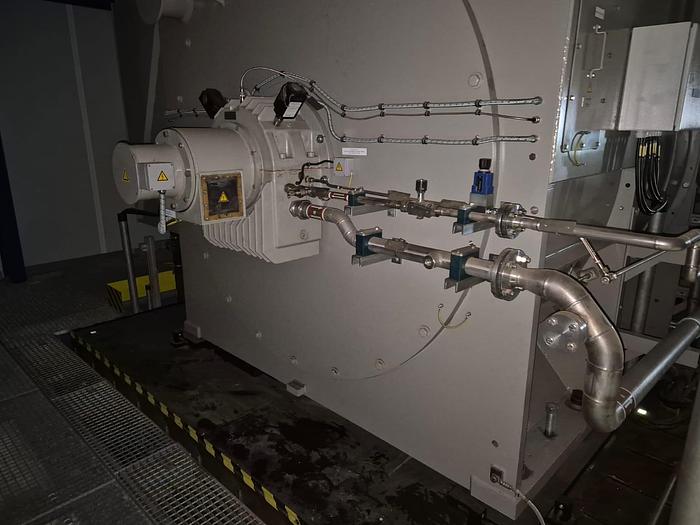

Alternator

Manufacturer: Siemens

Rated Output: 28,400 KVA

Power Factor: 0.75

Voltage: 10.5kV

Frequency: 50Hz

Speed: 1,500 RPM

UEN 3853
