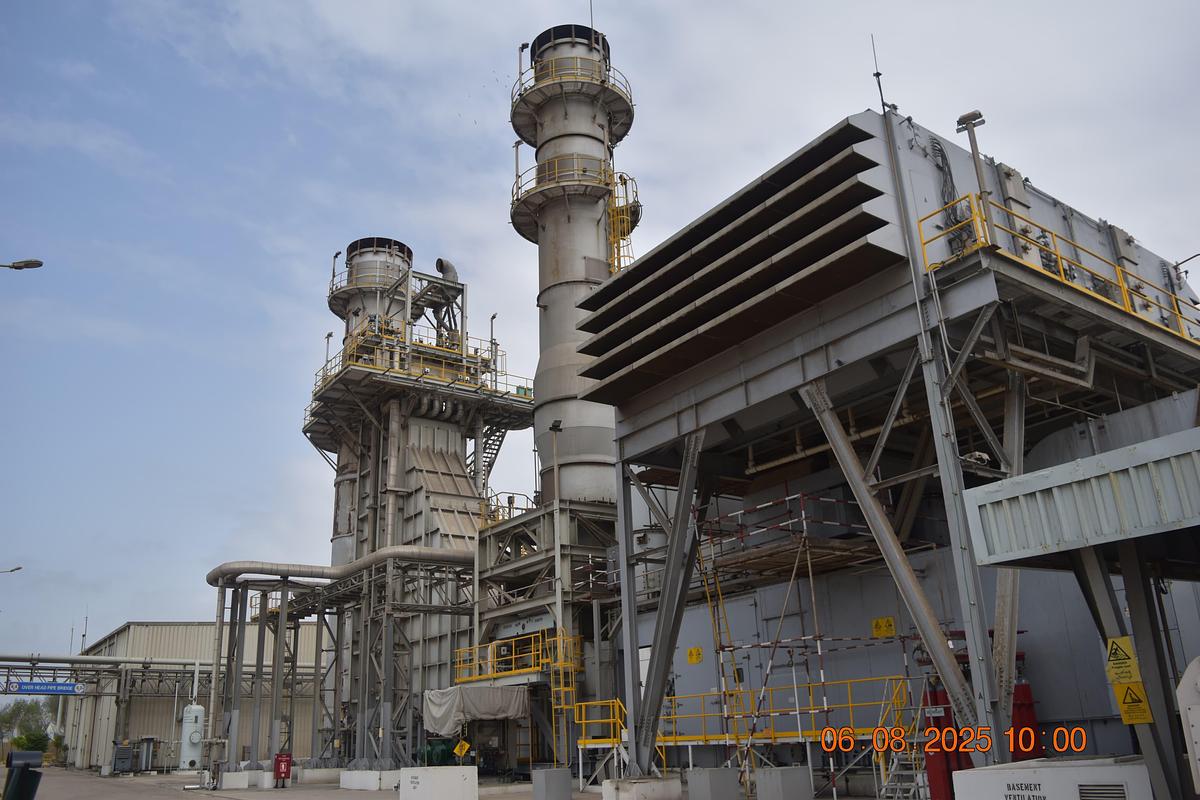

63MW Combined Cycle Power Plant

Used.

Year of Manufacture: 2009

Configuration:

1 x GTG, 1 x HRSG & 1 x STG

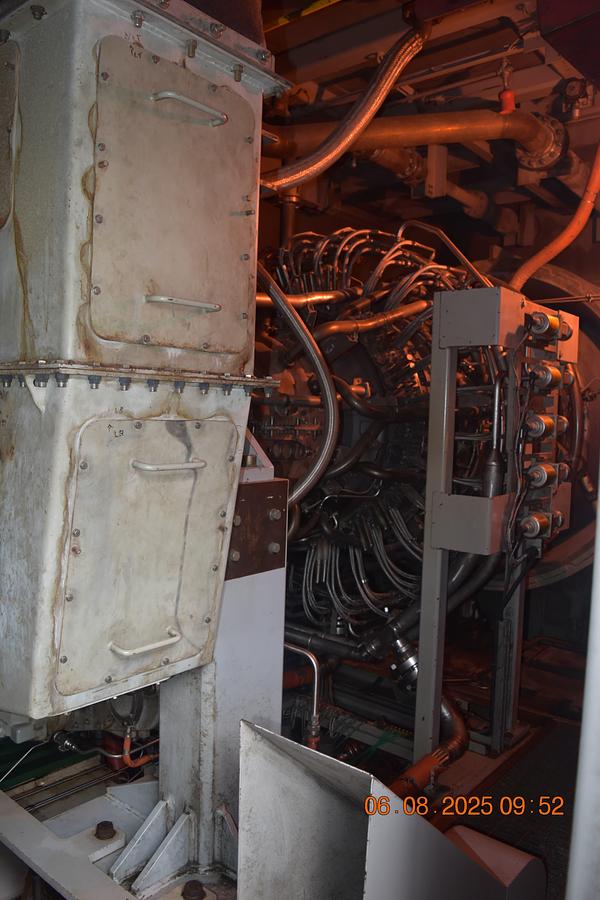

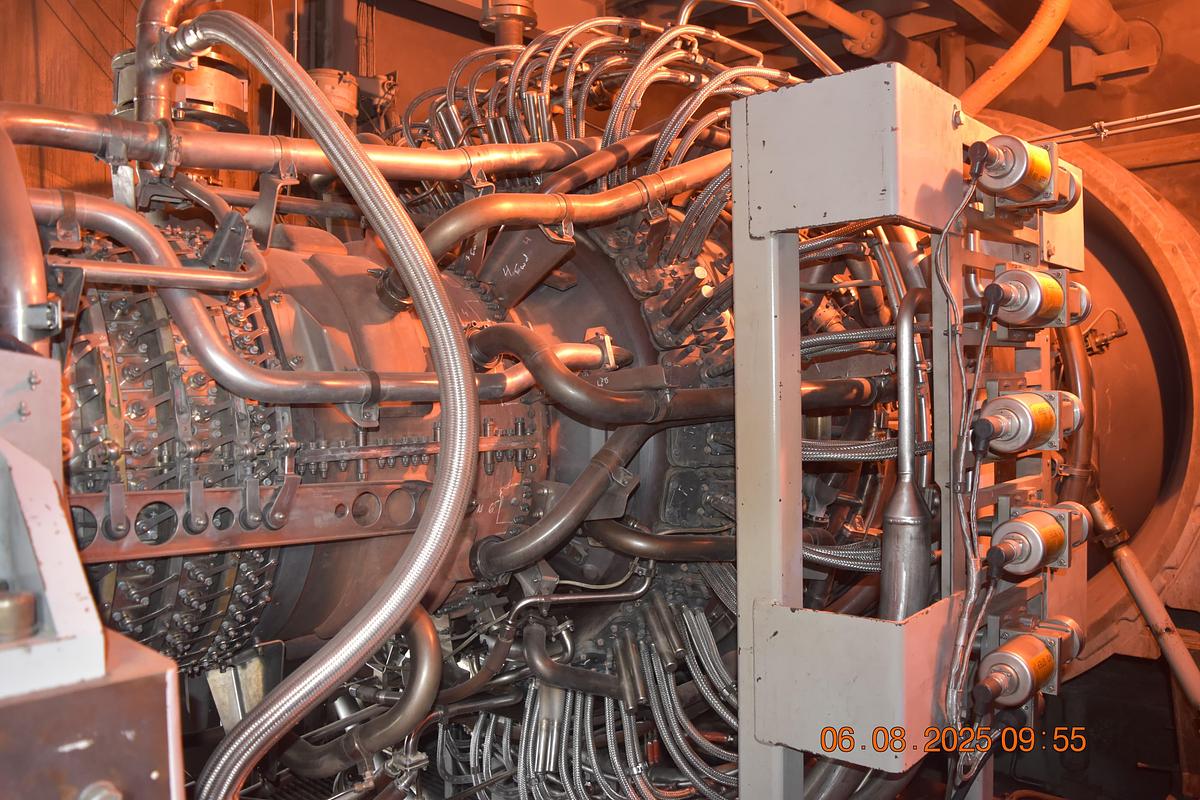

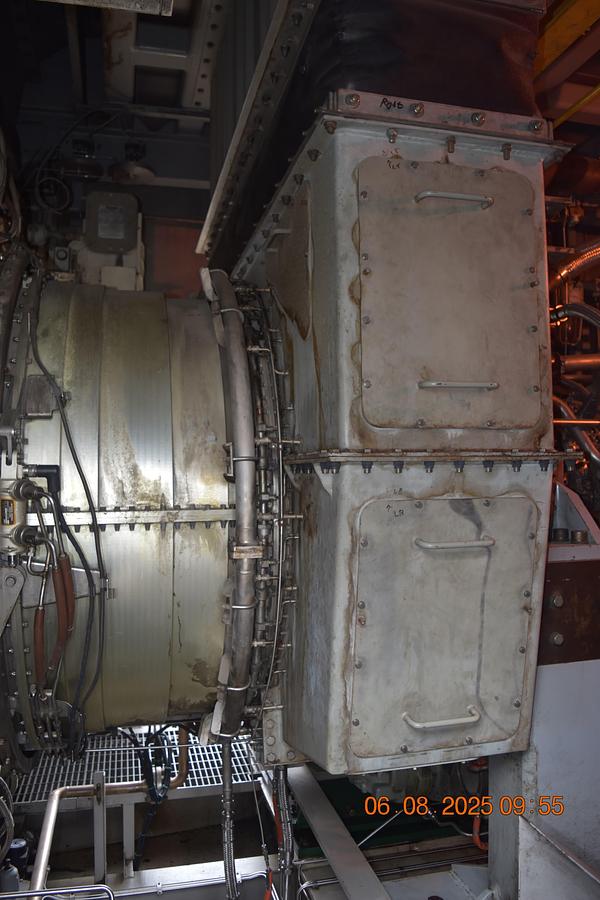

Gas Turbine

Manufacturer: GE

Model: LM6000 (DLE)

Rated Output: 48MW

Combustion: DLE

Fuel: Natural Gas

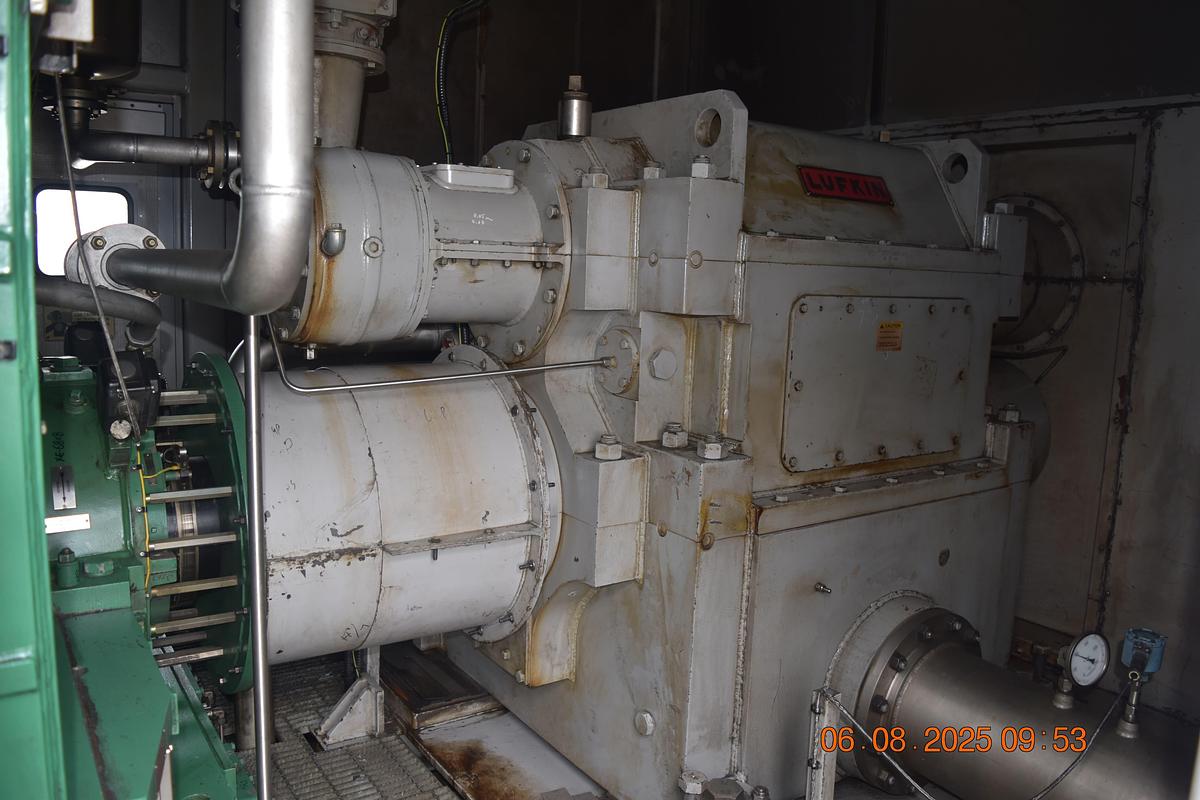

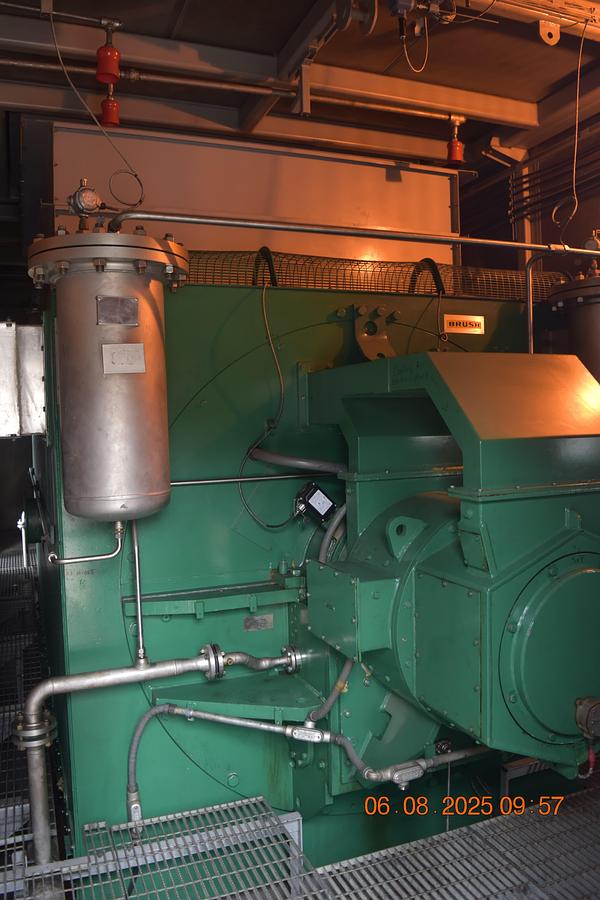

Gas Turbine Alternator

Rated Output: 63,000KVA

Power Factor: 0.8

Voltage: 11kV

Frequency: 50Hz

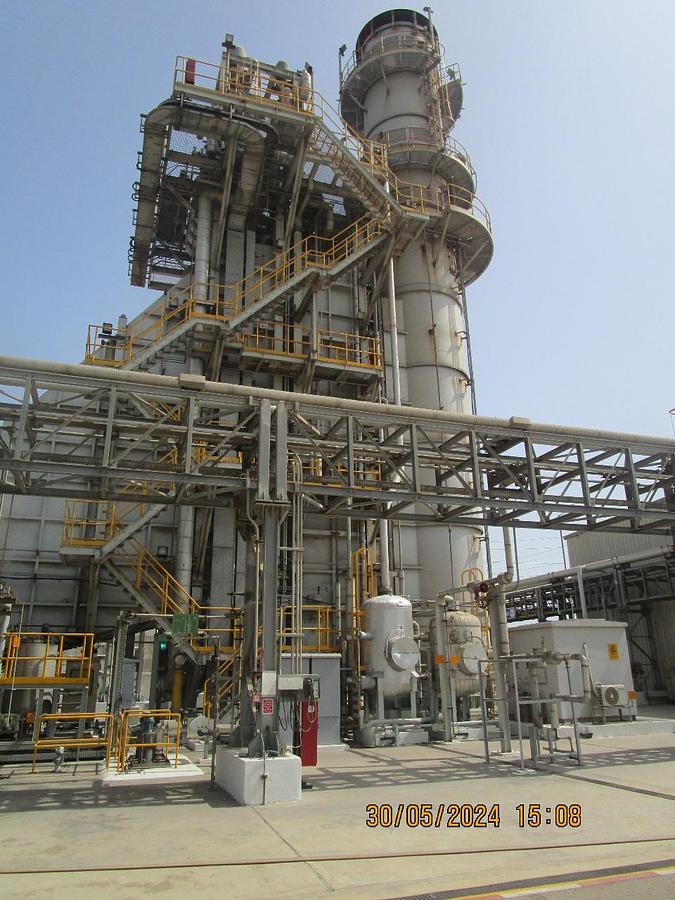

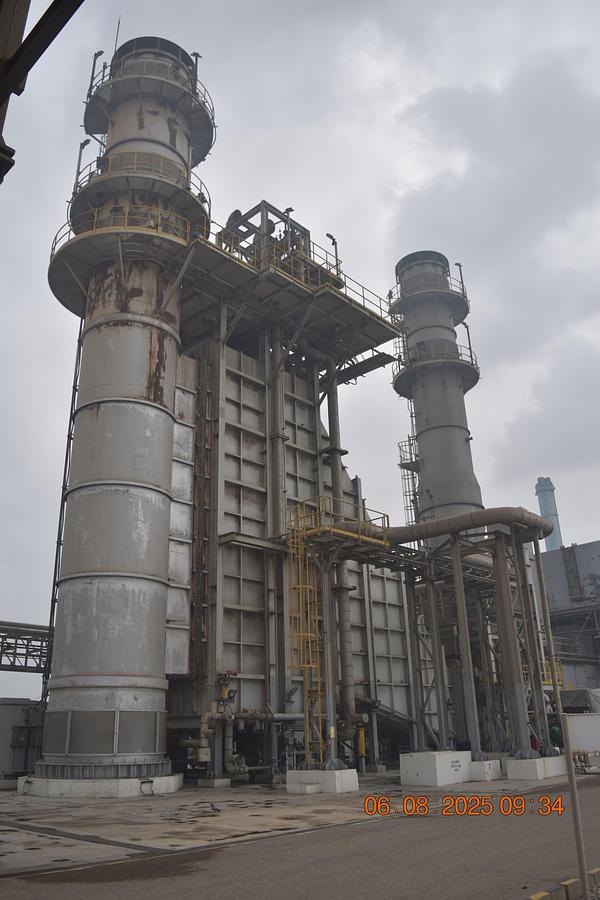

HRSG

52t/hr / 100Bar / 313 Deg C

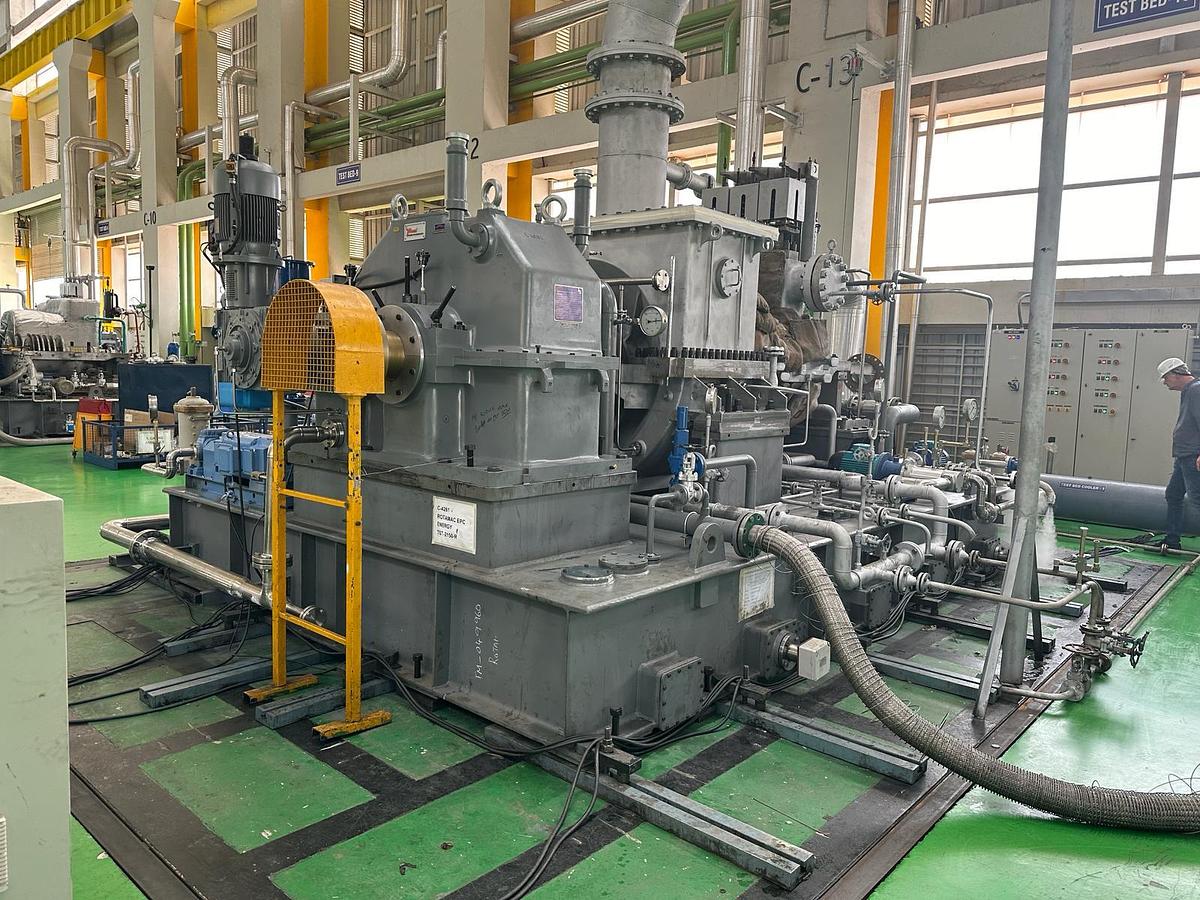

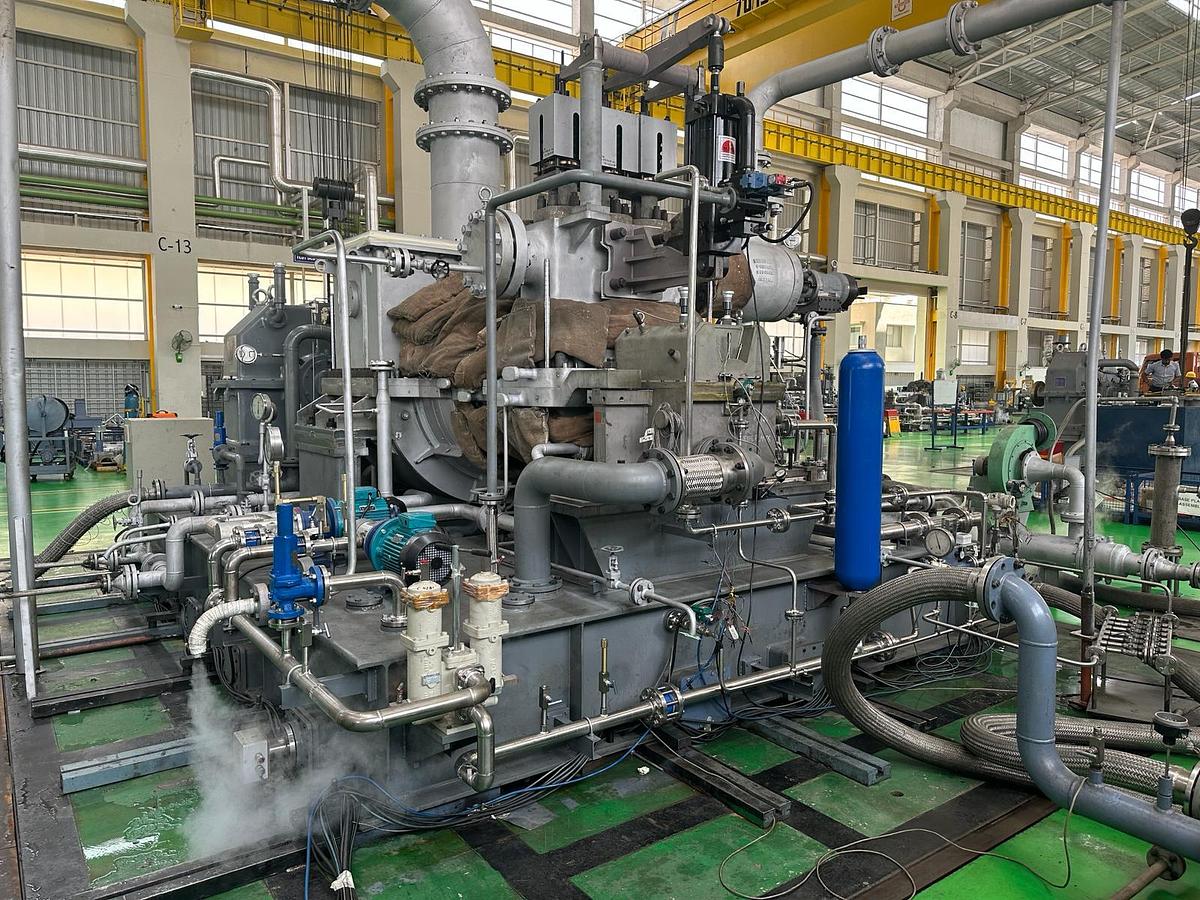

Steam Turbine

Manufacturer: Triveni Turbines

Rated Output: 15MW

Type: Condensing

ST Alternator:

Rated Output: 20,000KVA

Power Factor: 0.8

Voltage: 11kV

Frequency: 50Hz

Condenser: Water Cooled.
