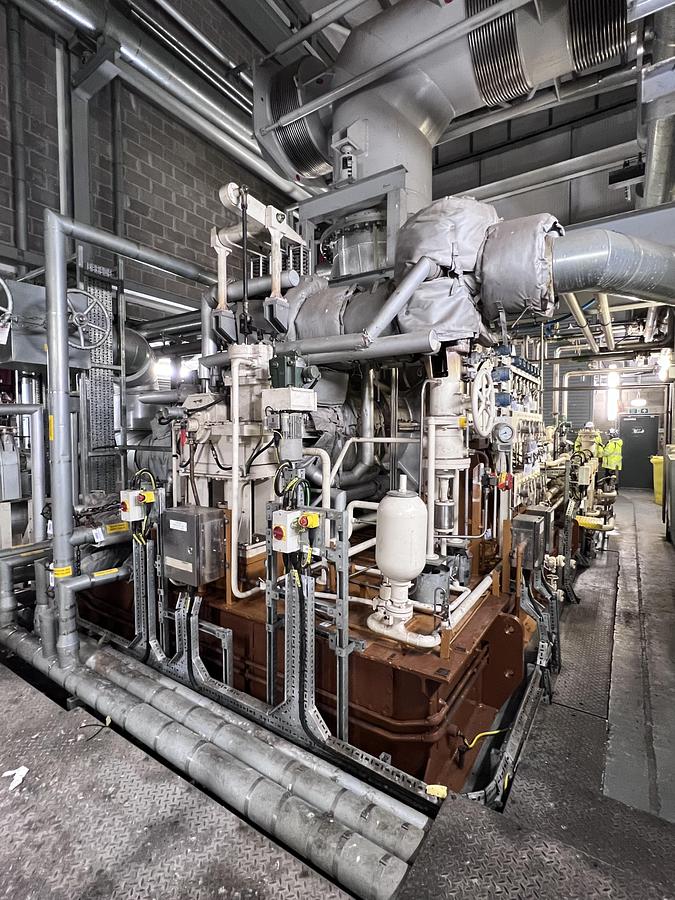

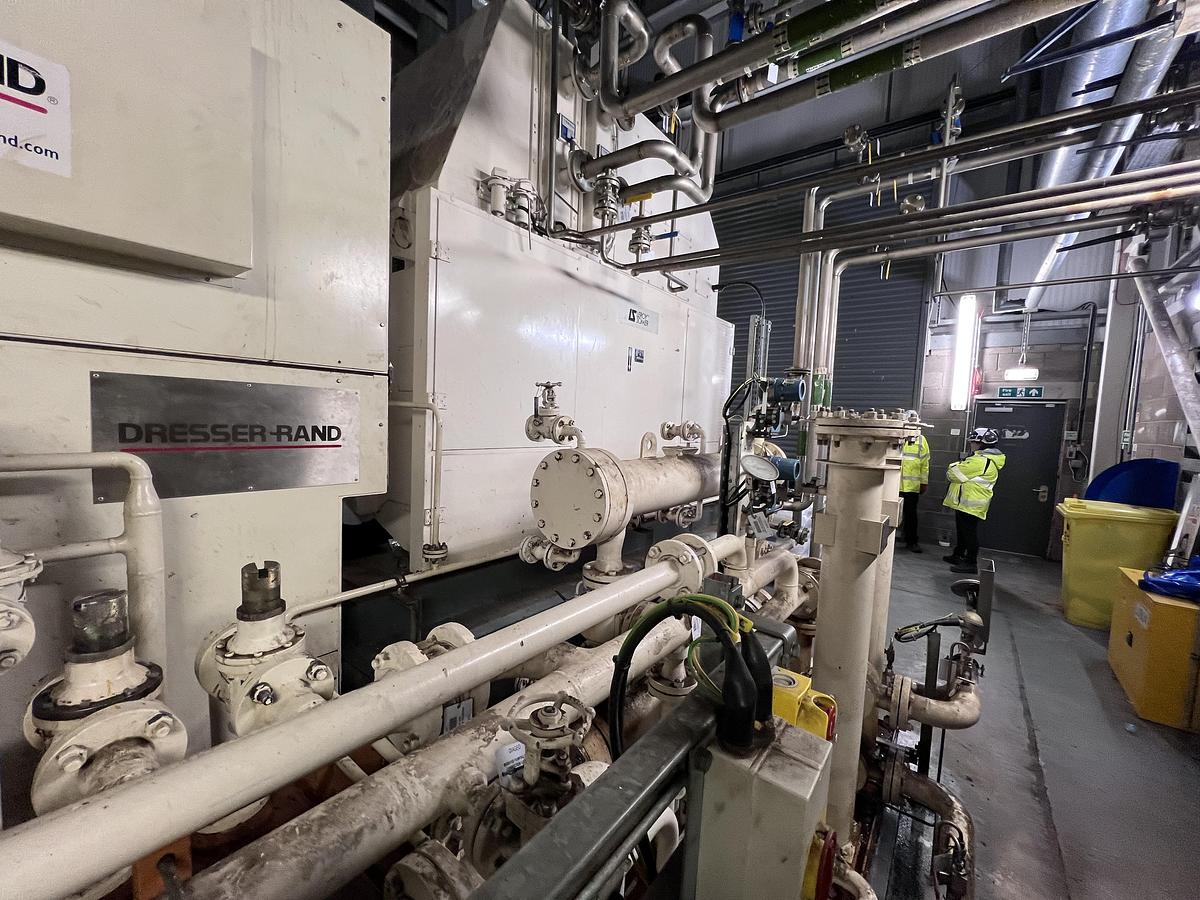

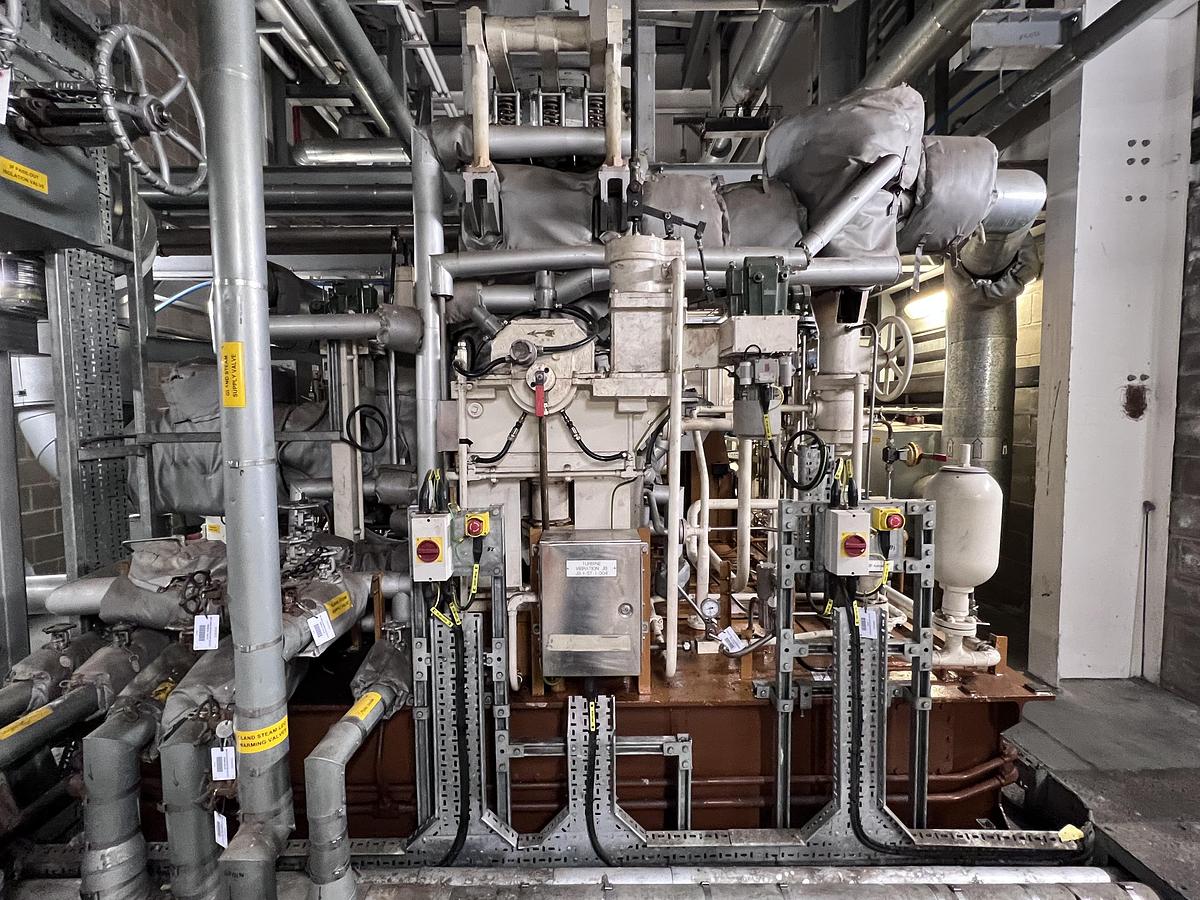

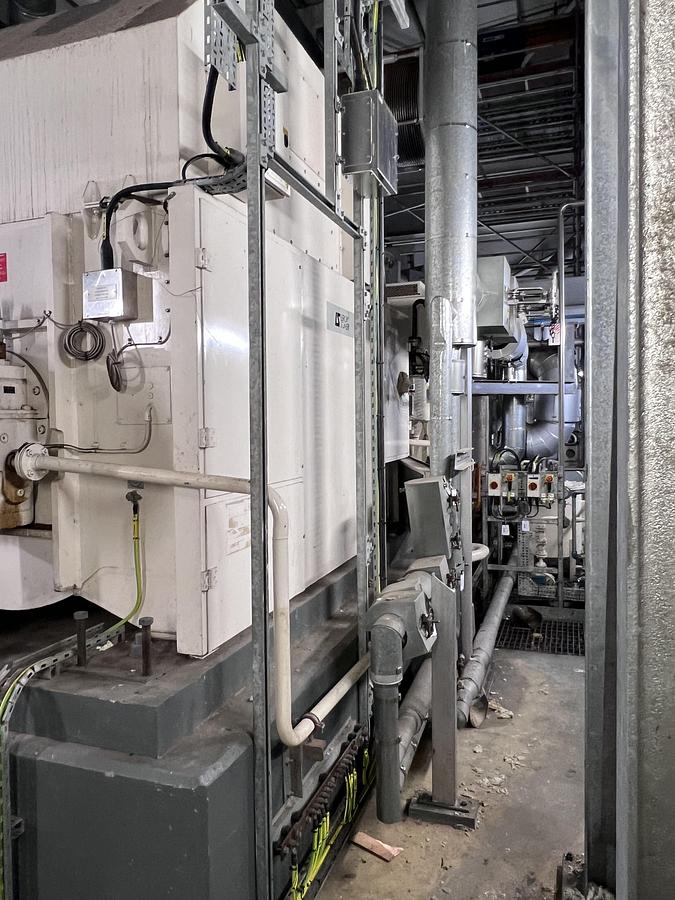

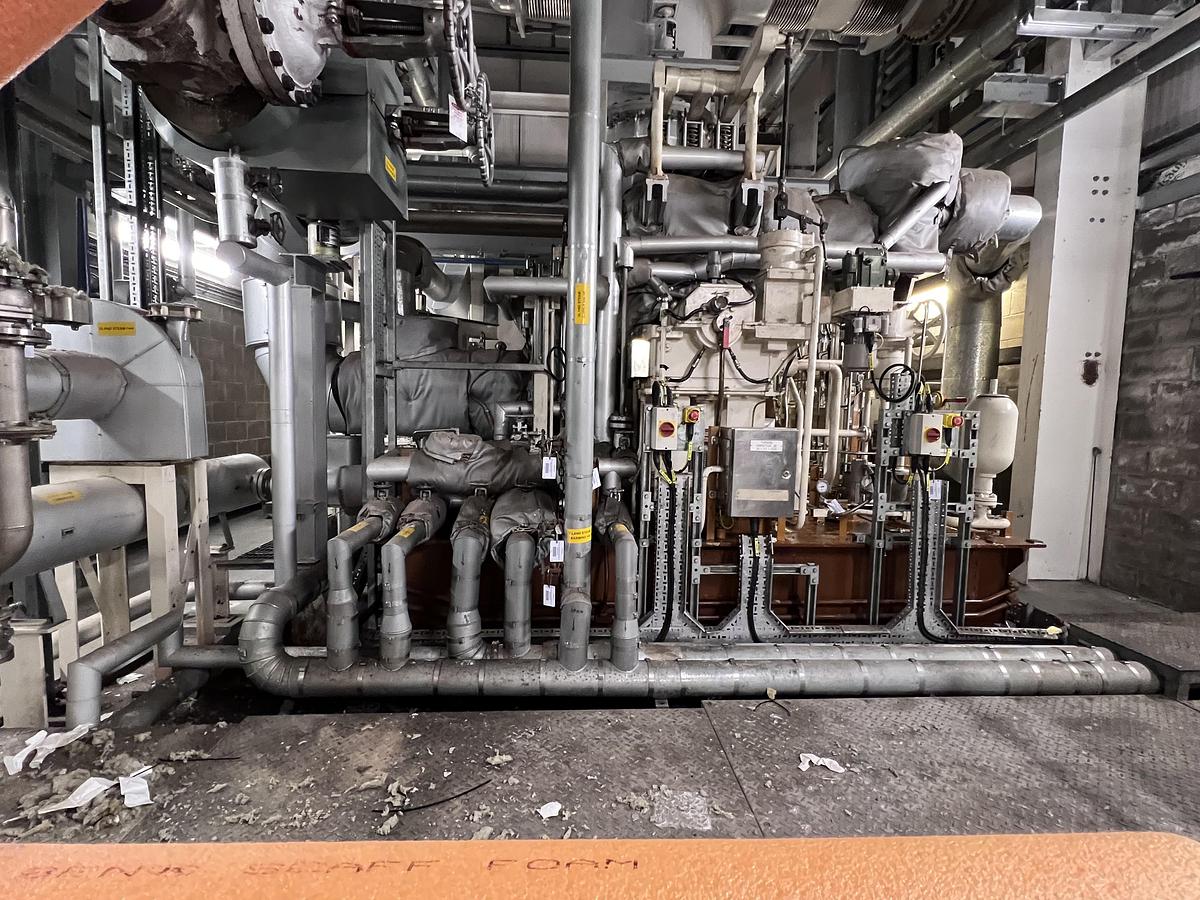

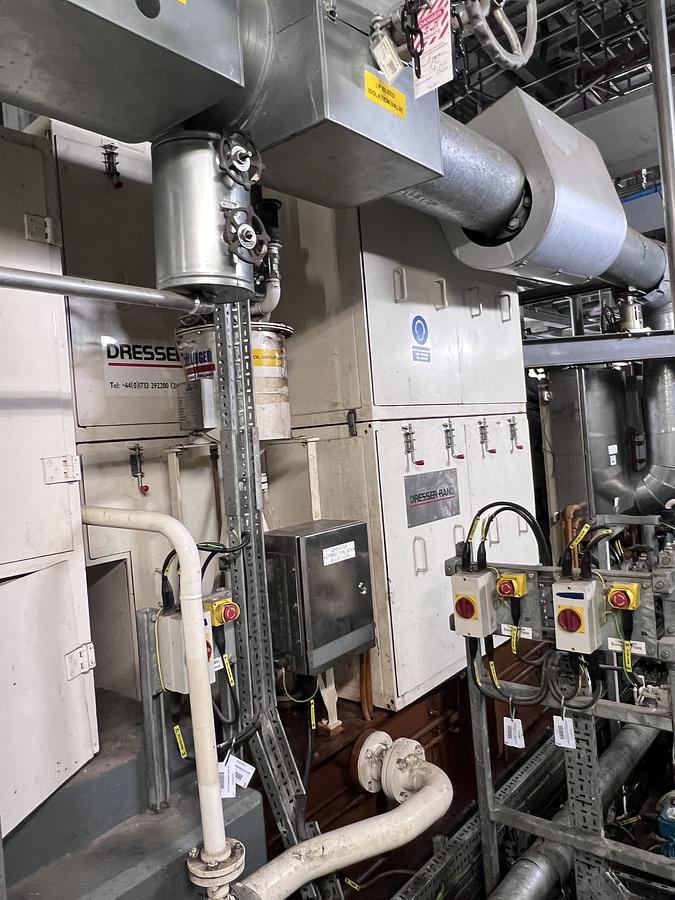

1 x 7.1MW Condensing with Extraction Steam Turbine-Generator Package (USED) 50Hz

1 x 7.1MW Condensing with Extraction Steam Turbine-Generator Package

Condition: Used

Year of Manufacture: 2010

Hours: Test only

Make: DRESSER-RAND COMPANY LTD (Peter Brotherhood)

Type: Condensing with Extraction

Maximum Continuous Rating: 7,110 kWe

Rated Speed: 8250 rpm

Inlet flow rated: 50,000 kg/h

Inlet pressure rated: 63 bar abs.

Inlet Temperature rated: 455 °C

Exhaust pressure Rated: 0.08 bar abs.

Extraction;

Rated pressure: 17 Bar abs.

Rated flow: 0-27,500 kg/h

GEARBOX:

Manufacturer: Dresser-Rand

Input Speed: 8,250 RPM

Output Speed: 1,500 RPM

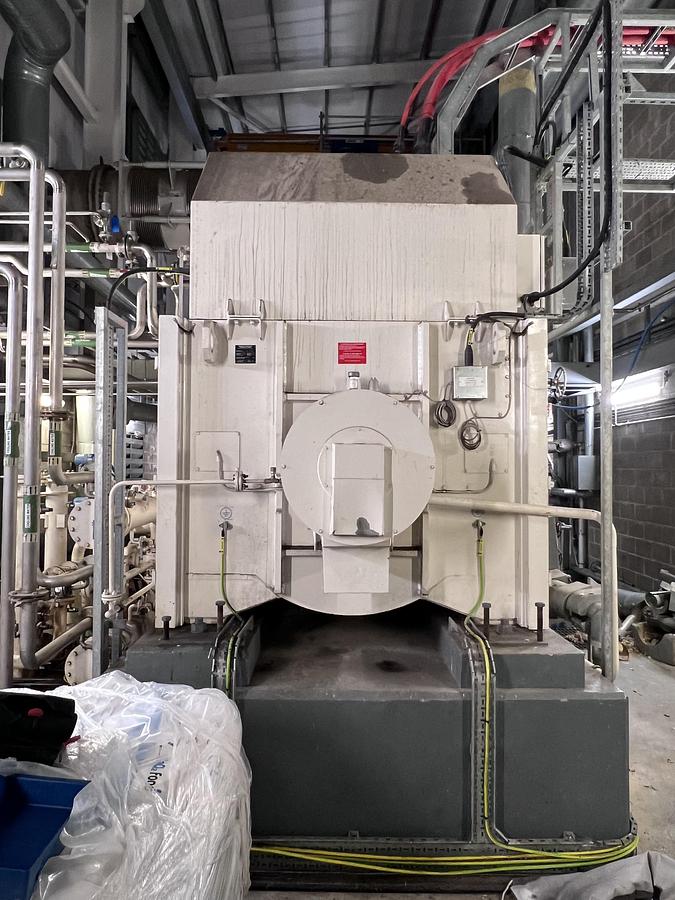

ALTERNATOR:

Manufacturer: Leroy Somers

Rated Capacity: 8,888 KVA

Power Factor: 0.8

Speed: 1,500 RPM

Frequency: 50 Hz

Voltage: 11,000 v

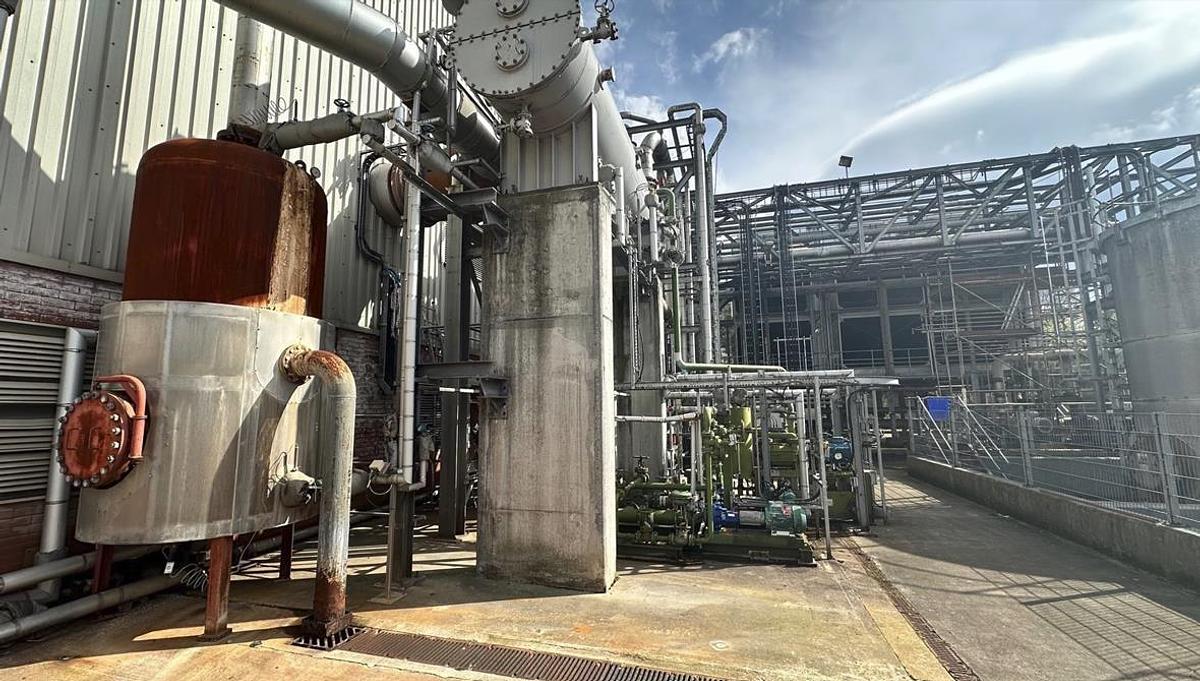

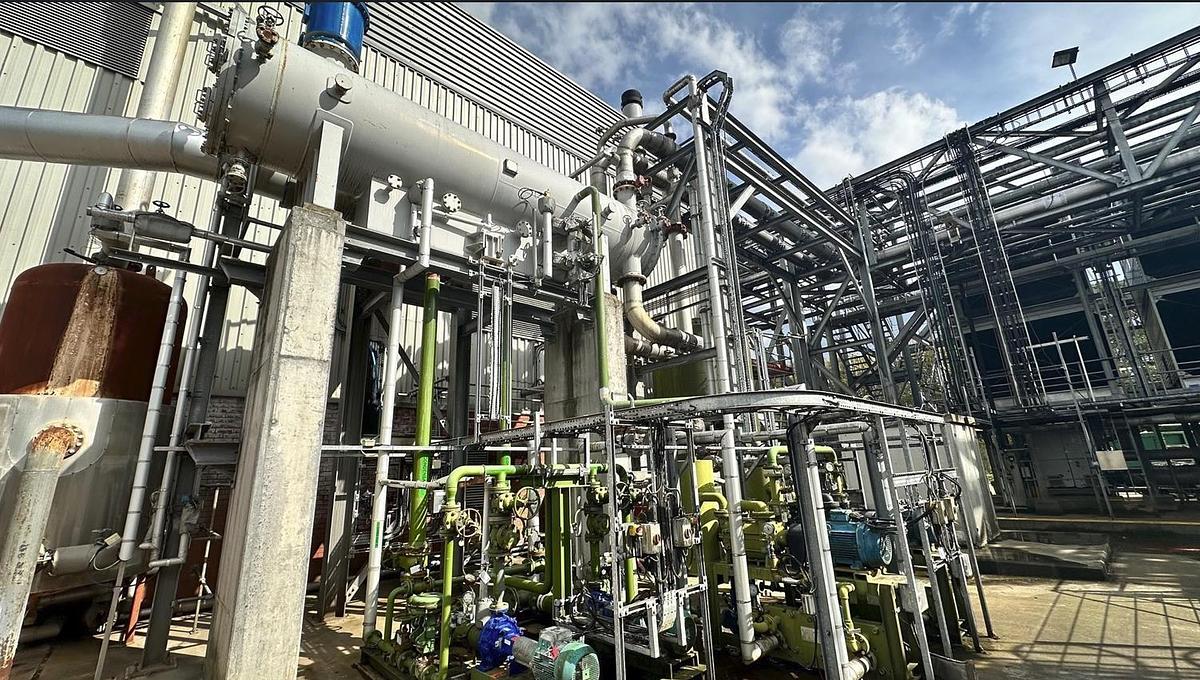

CONDENSER:

Type: Water Cooled (surface)

Manufacturer: GEA Iberica SA

UEN 3852
