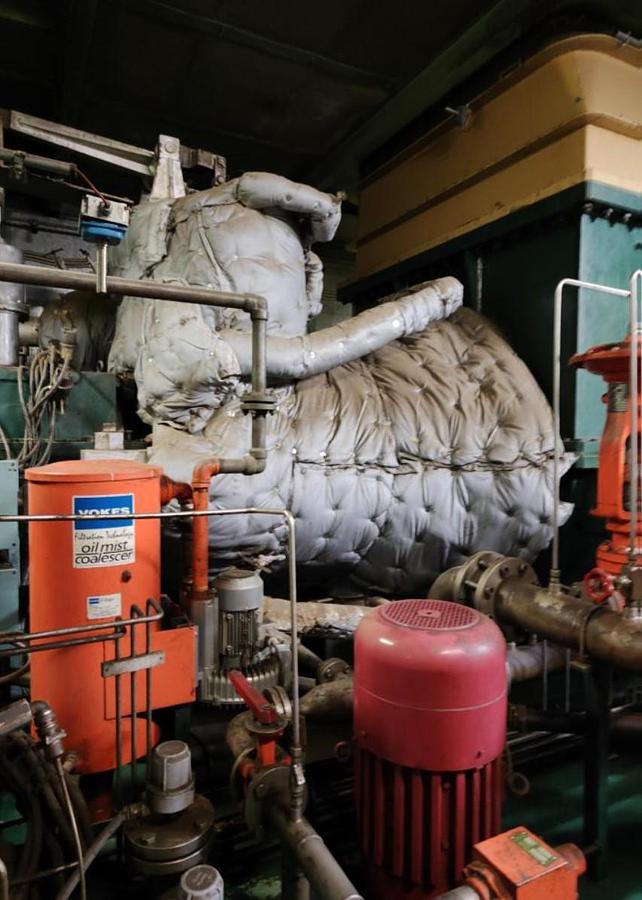

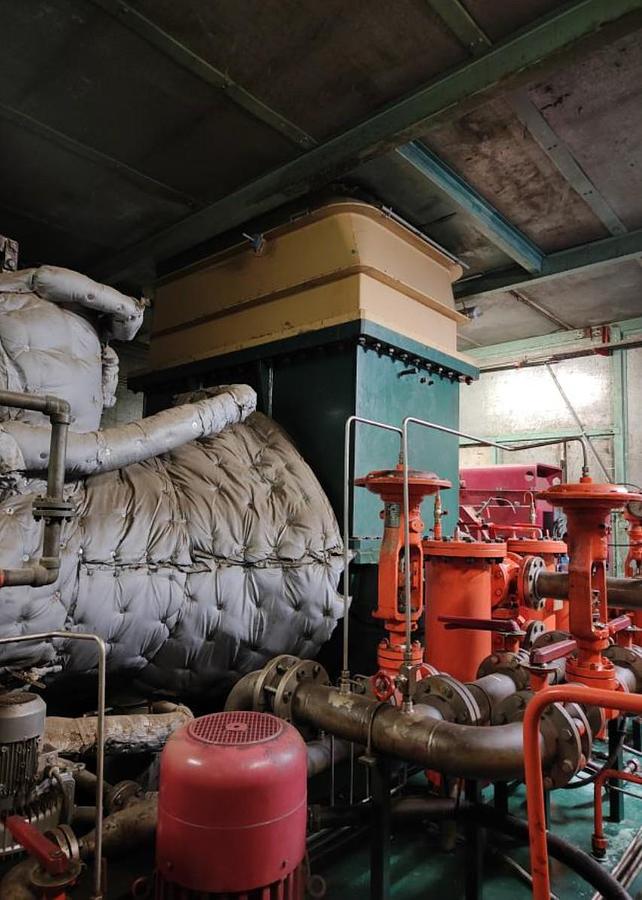

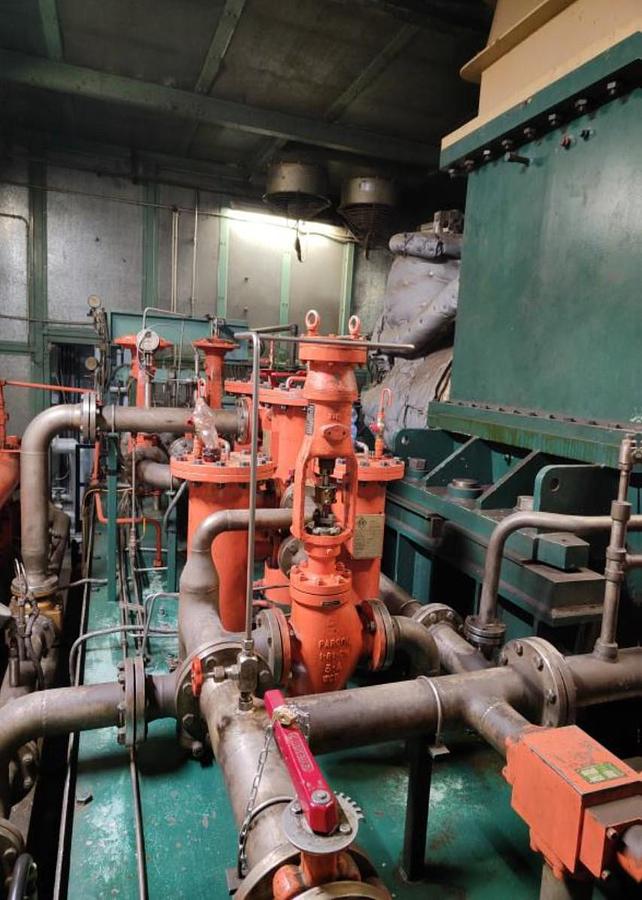

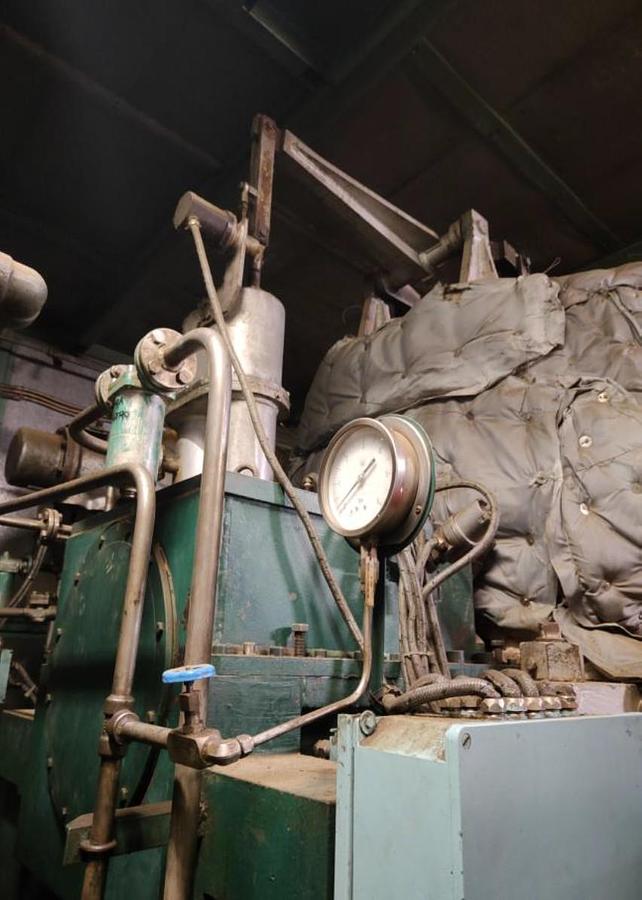

19MW Condensing Steam Turbine-Generator Package (USED) 50Hz

19MW Condensing Steam Turbine-Generator Package with ACC

Used

Year of Manufacturer: 1999

Hours of Operation: 150,000

Turbine:

Manufacturer: Ansaldo

Power: 19MW

Inlet Pressure: 62Bar A

Inlet Temperature: 440Deg C

Exhaust Pressure: 0.105Bar A

Speed: 5800 RPM

Gearbox:

Manufacturer: Flender

Input/Output Speed: 5800/1500 RPM

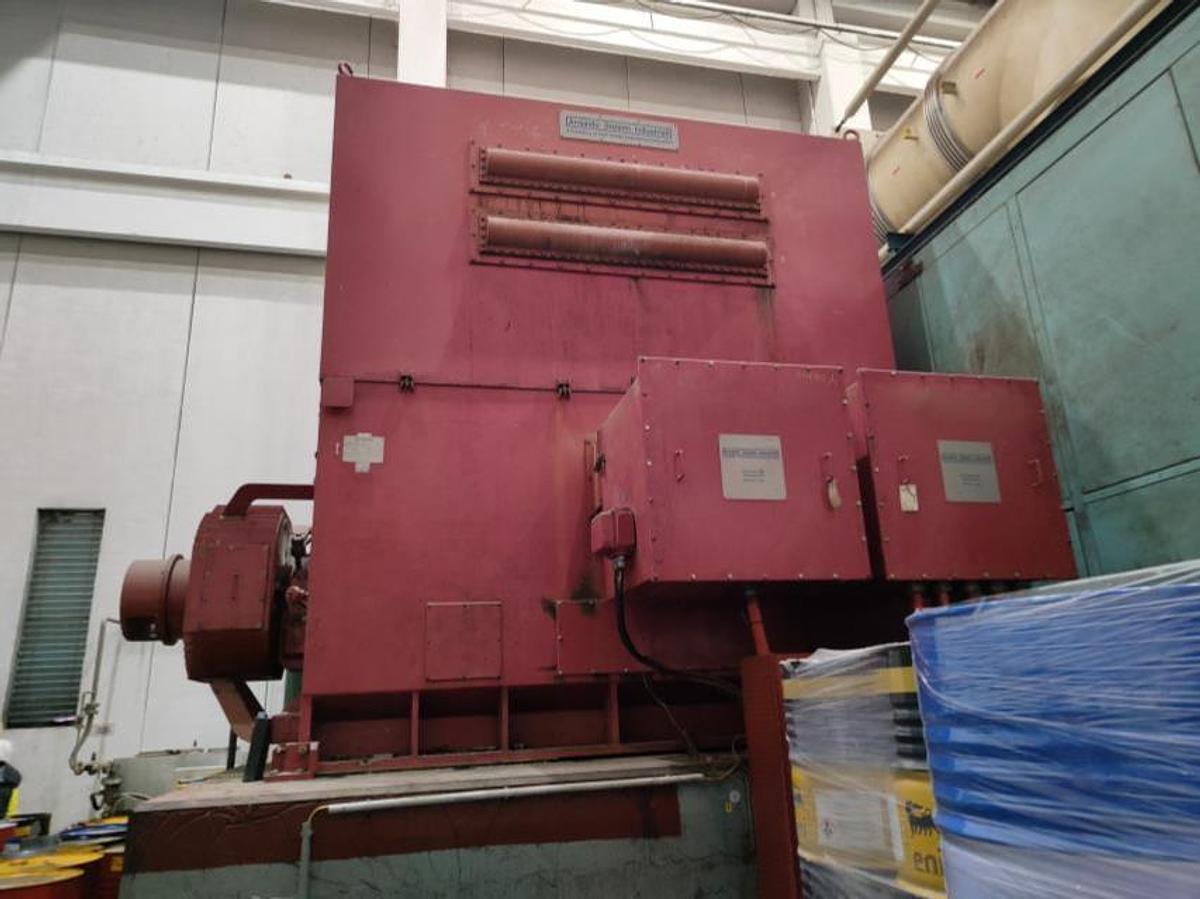

Alternator:

Manufacturer: Ansaldo

Rated Output: 23,750 KVA

Power Factor: 0.8

Voltage: 11kV

Frequency: 50HZ

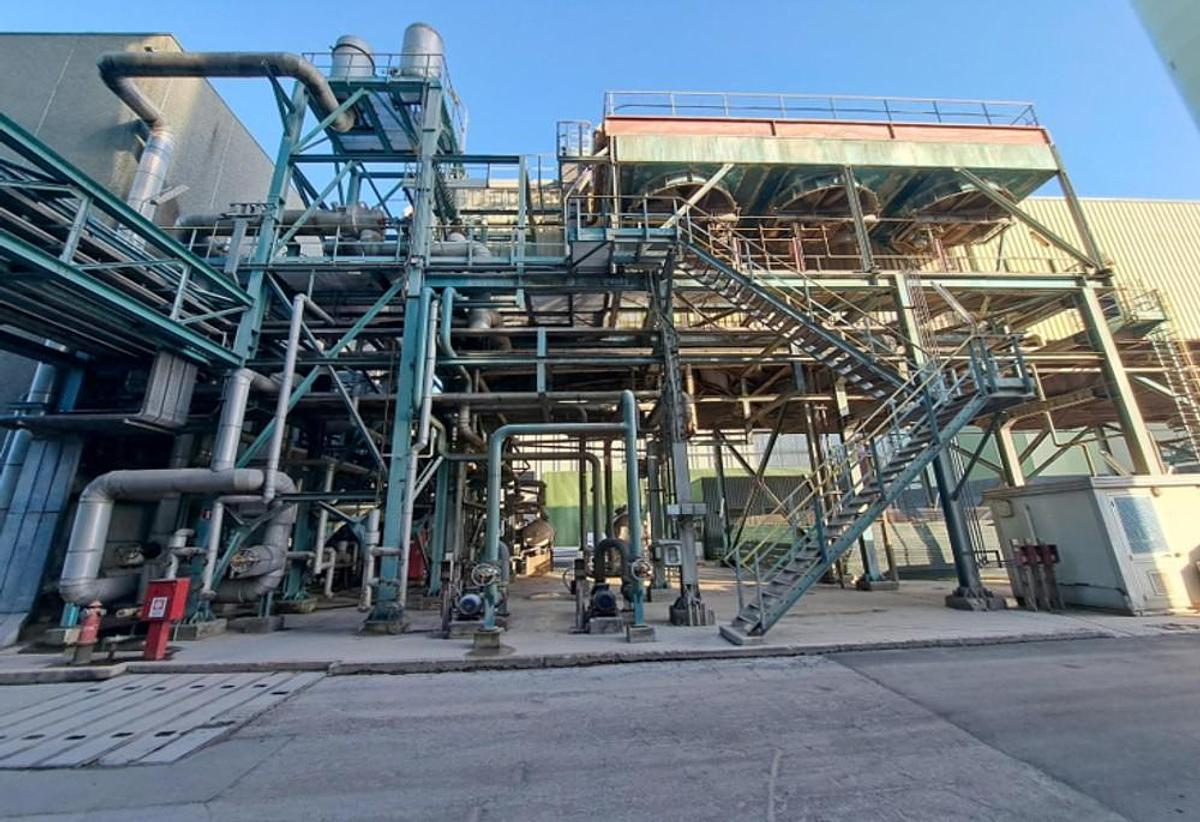

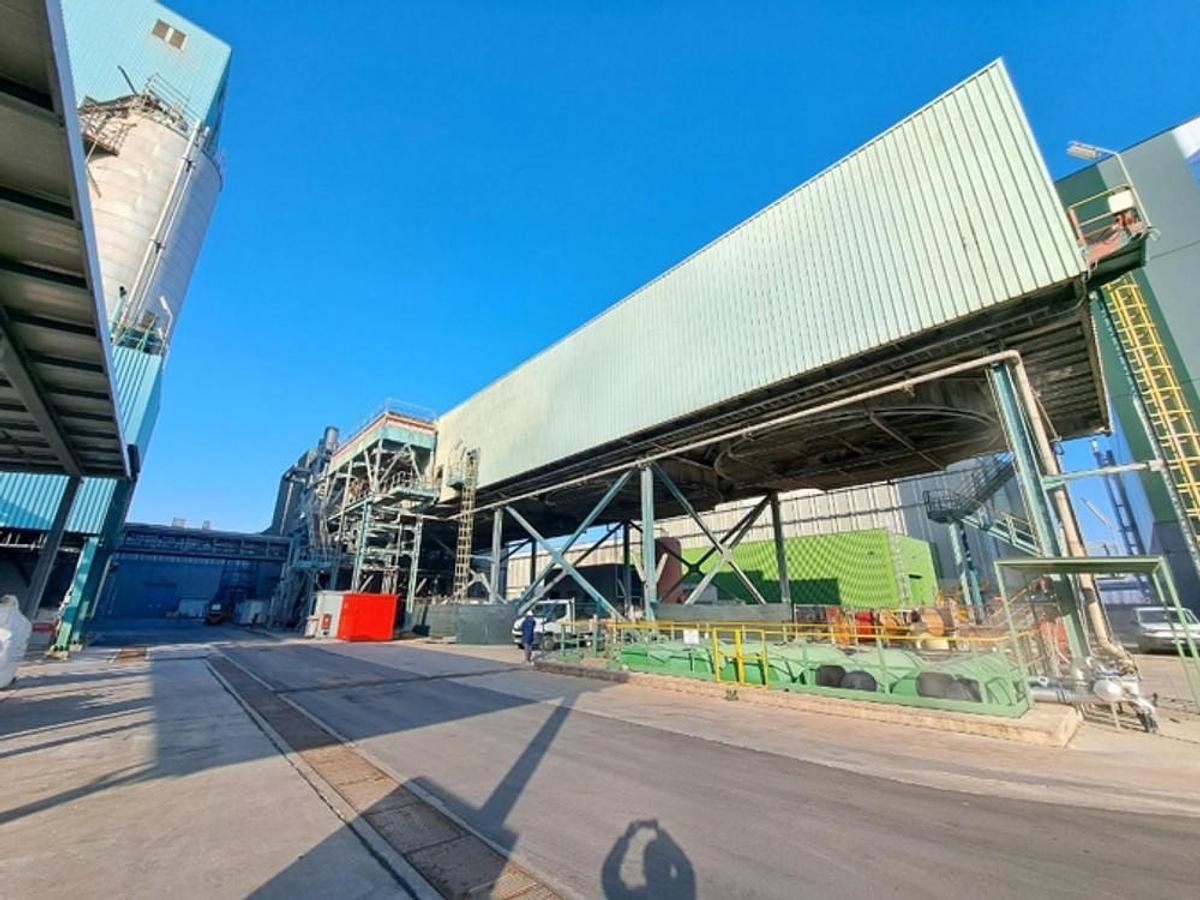

Condenser: Air Cooled

UEN 3969
